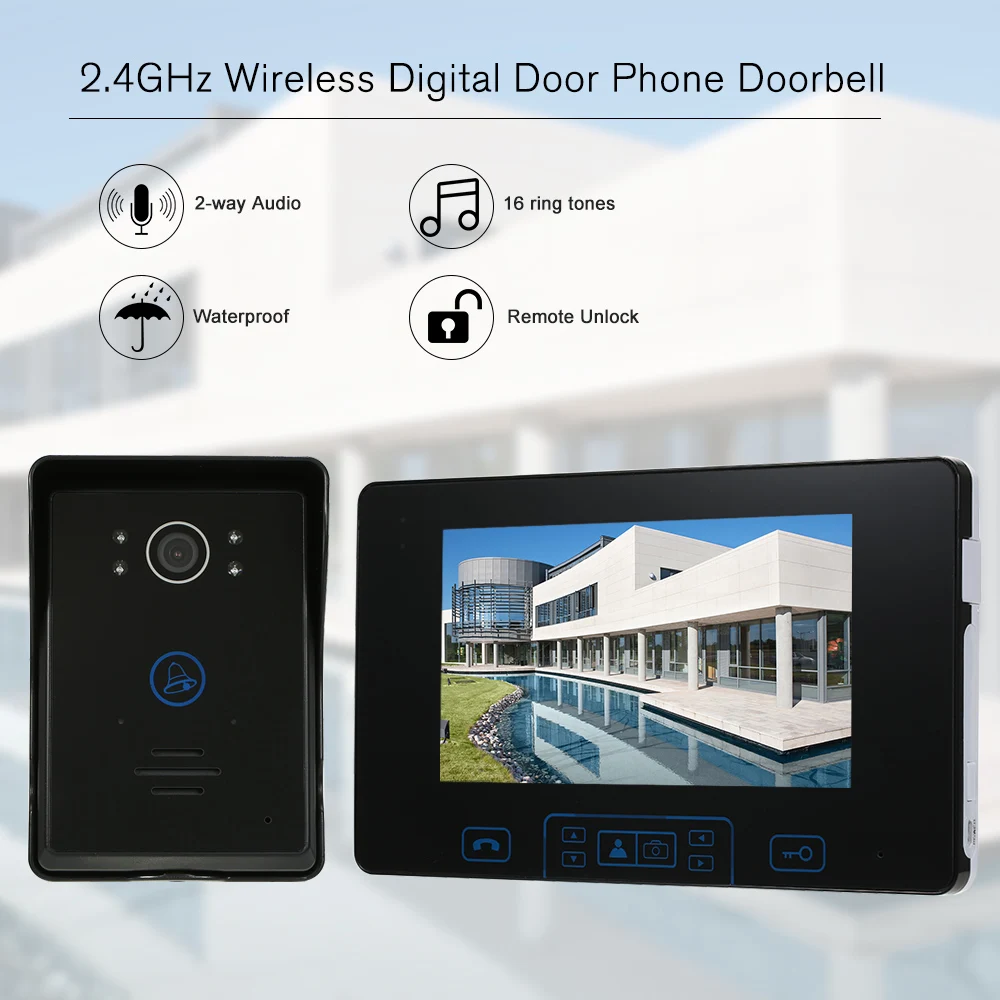

AnjieloSmart 2.4GHz Wifi Video Doorbell with 7inch TFT LCD Screen helps you identify visitors. Key features include two-way audio, night vision, 16 ringtones and storage of pictures with date and time stamp.
Please Note: The doorbell and indoor monitor can standby for about 15 days powered by Li-ion battery when they are not connected to the power source. If you do not want to recharge approximately every 15 days, the doorbell and the indoor monitor have to remain plugged into a power outlet using the power adapters provided.

Features:
*2.4GHz Wireless Door Phone: 2.4GHz digital frequency hopping and encryption technology, transmission distance up to 300 meters in open area and stable signal, robust anti-interference.
*1 indoor monitor &1 outdoor camera: 7 inch digital TFT color screen, indoor monitor can store up to 100 pictures with date and time, a super experience.
*This is a video door phone with the functions of monitor, wireless unlocking, hands-free call and talk.
*Brightness and talk volume are both adjustable, a selection of 16 ring tones are included.

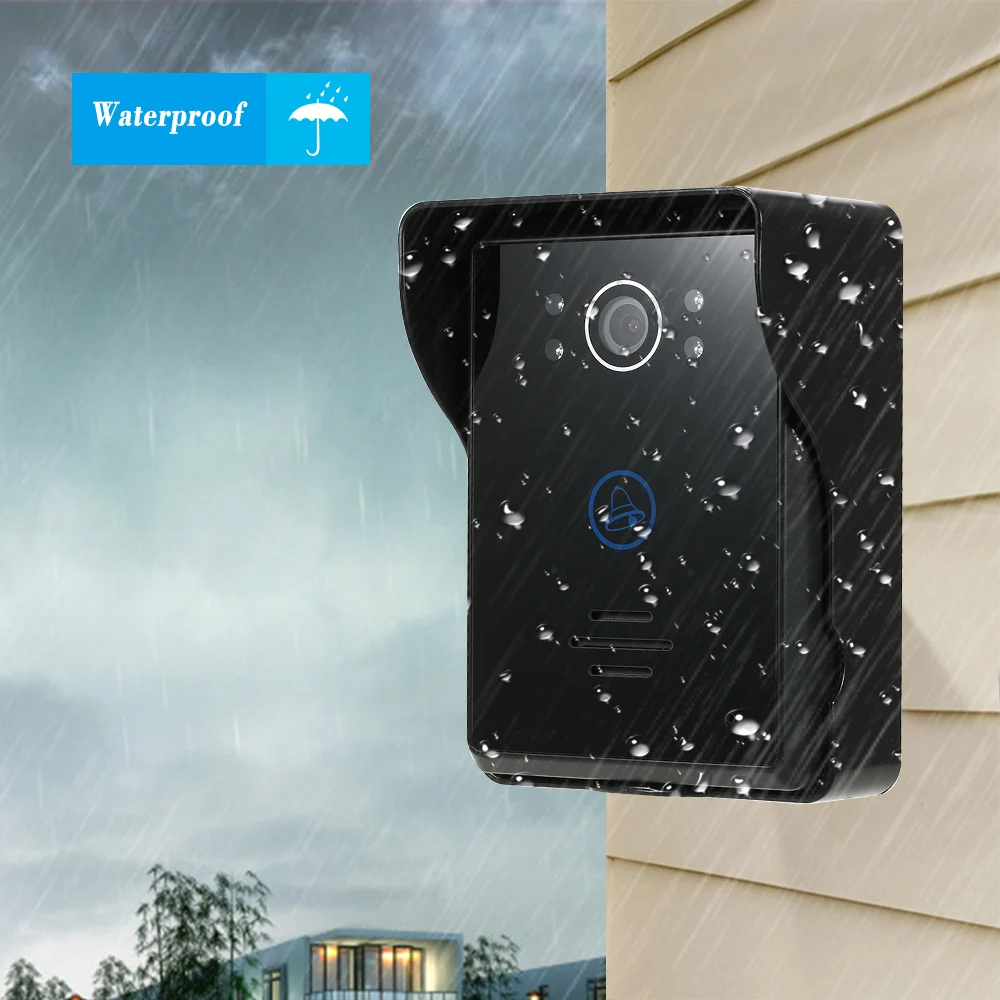

*For the outdoor camera, clear night vision can capture image in low-illumination environment, with rain cover for the outdoor camera is available, very practical for using.
*For the indoor monitor, with high-strength tempered glass, corrosion and scratch resistance, all that provides longer working life.

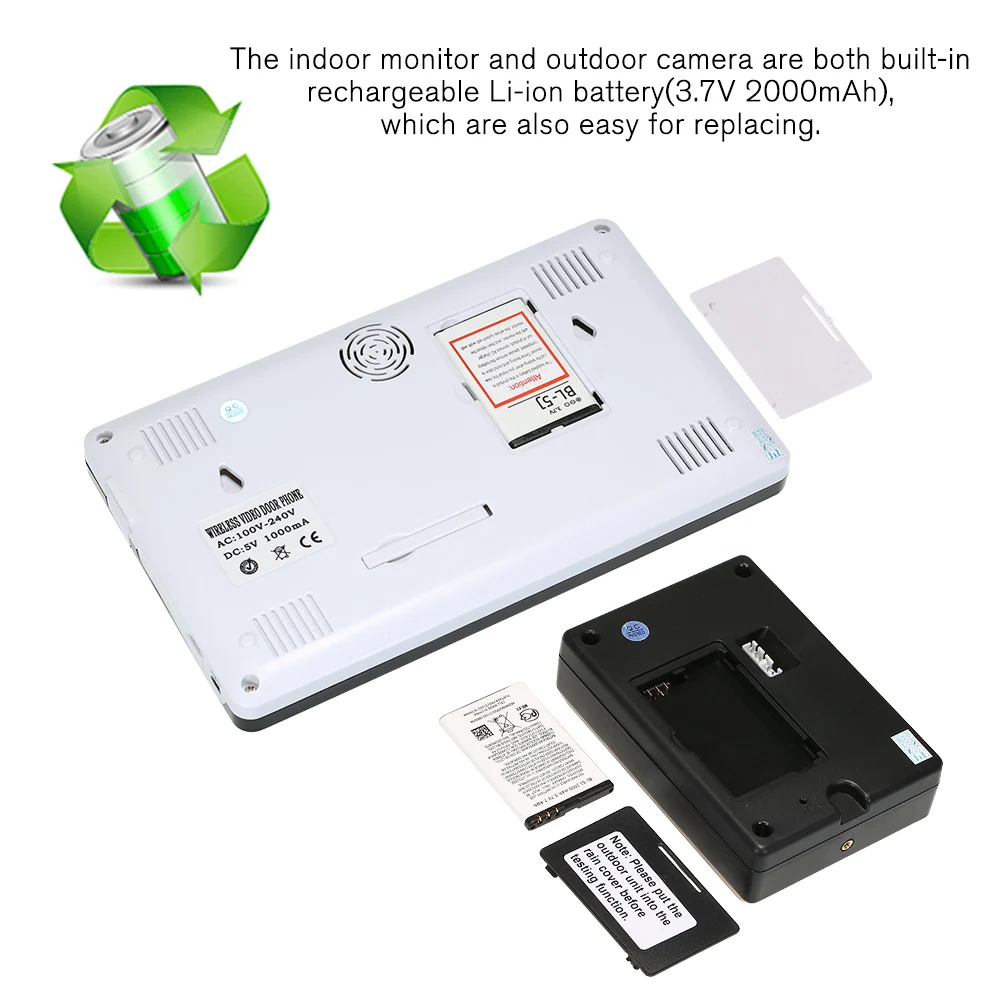

*The indoor monitor and outdoor camera are both built-in rechargeable Li-ion battery (3.7V 2000mAh), which are also easy for replacing.

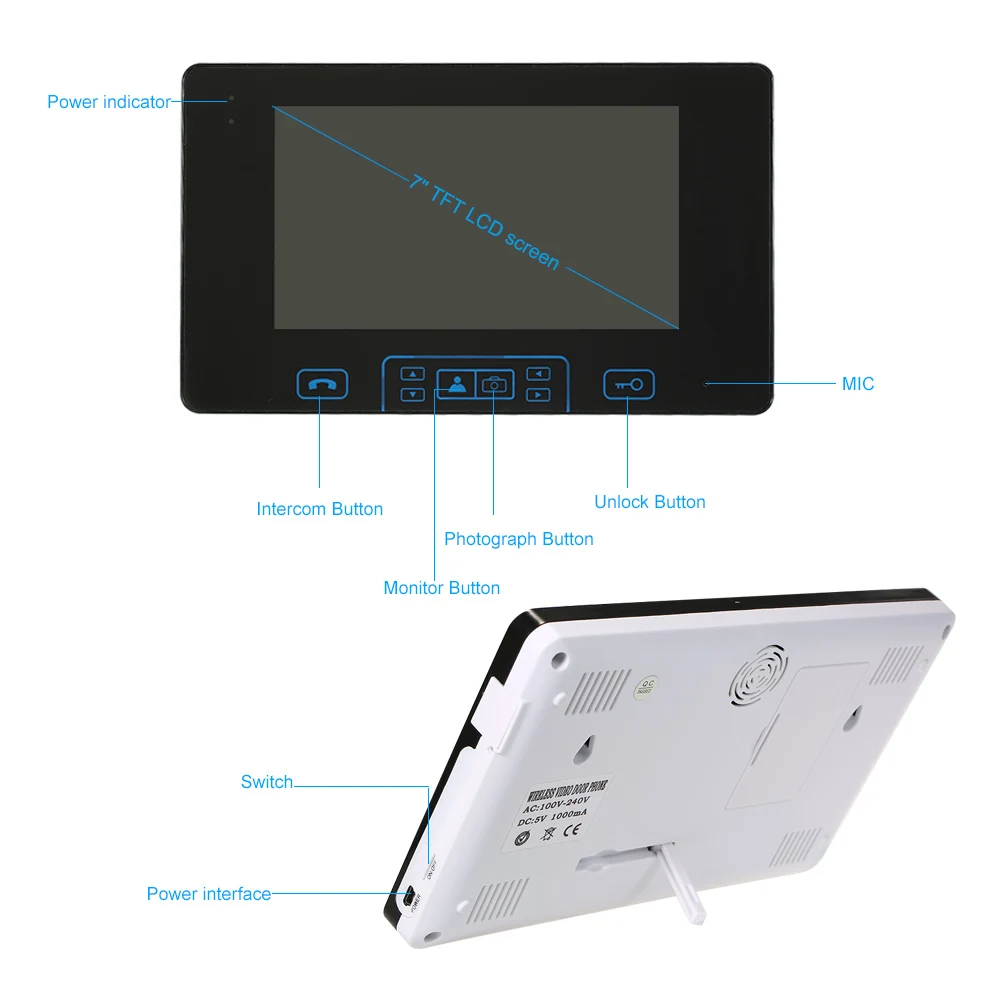

Indoor Monitor:
Display: 7″ TFT LCD Resolution:800*480
Power adapter: Input :AC100-240V 50/60Hz 0.2A; Max Output:5V 1A
Battery: 1*3.7V 2000mAh Li-ion battery(included)
Touch : YES
Ringtone: 16 optional
Brightness/talk volume: adjustable
Material: ABS&Glass panel
Quantity: 1 pack
Monitor Size: 22.5*13.5*2cm
Monitor Weight(with battery): 455g

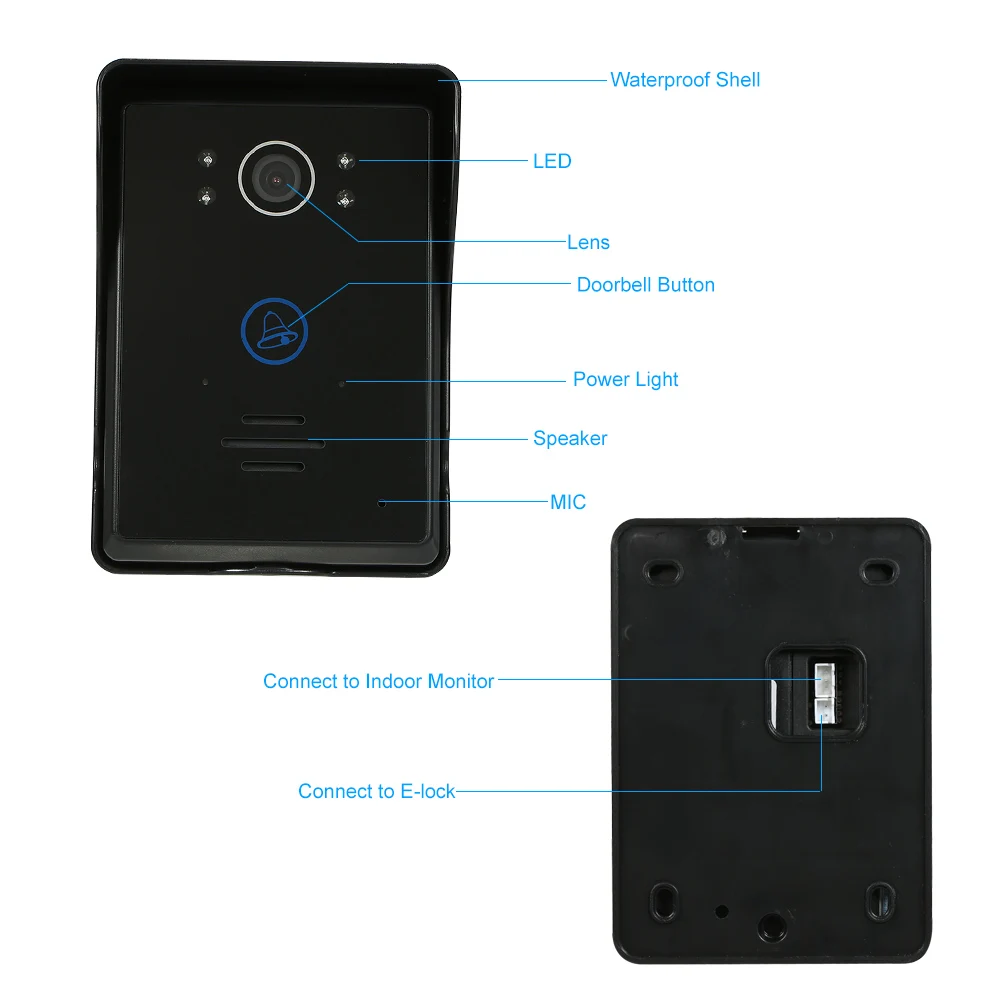

Outdoor Camera:
Power adapter: Input:AC100-240V 50/60Hz 0.2A; Max Output:5V 1A
Battery: 1*3.7V 2000mAh Li-ion battery(included)
Definition: 0.3MP
Rainproof: Support(with rain shield)
Tamper alarm: Support
Material: ABS&Glass panel
Quantity: 1 pack
Camera Size(with rain shield): 13*9.5*6cm
Camera Weight(with rain shield): 245g

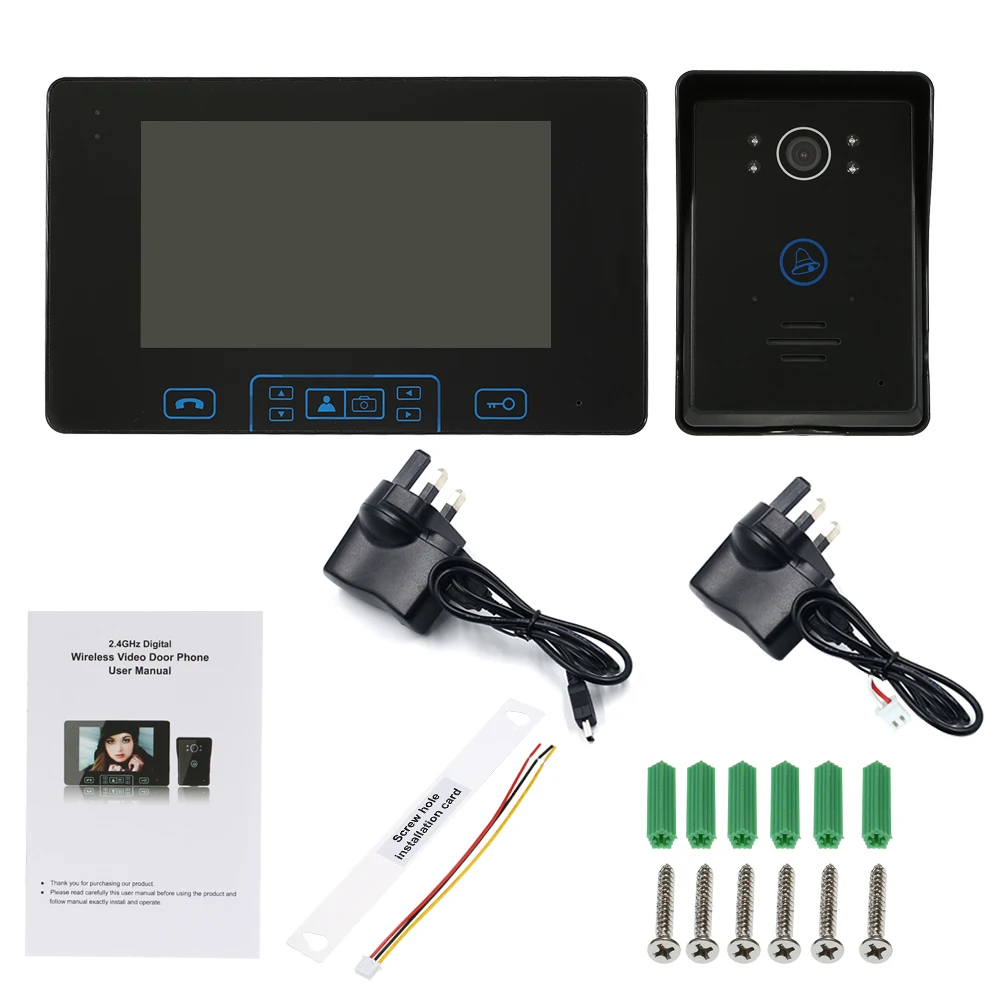

Package List:
1* Indoor Monitor (with battery)
1* Outdoor Camera (with battery)
2* Power Adapter
1* 3 Pin Cable
1* Screw Hole Installation Card
1* Bag of Mounting Screws
1* User Manual(English)

Access Control Connect diagram
